Found wire cut on front wire harness need help identifing.

Started by MaaloX, July 12, 2011, 06:21:43 PM

Previous topic - Next topic
Print
Go Down Pages1
User actions

MaaloX

July 12, 2011, 06:21:43 PM Last Edit: July 12, 2011, 06:31:16 PM by MaaloX
Hey guys,

I was doing some cleaning and noticed a connector had been cut off of my bike on the front main wire harness. I had been having issues with my Rectifier and was doing some testing and that is how I found this rogue wire!  Does anyone know what it should be connected too?  It has 2 wires one black and one gray.
98 M750
Welllll I guess I cant use picasaweb to post pics....Ill be back.

1998 M750, SBK forks, FP Jet kit,  K&N Air Filter, Shorty brake clutch levers, CA Coils, 15 42 gearing, carbon fiber cans,

Speeddog

#1
July 12, 2011, 06:28:29 PM Last Edit: July 12, 2011, 10:00:19 PM by Speeddog

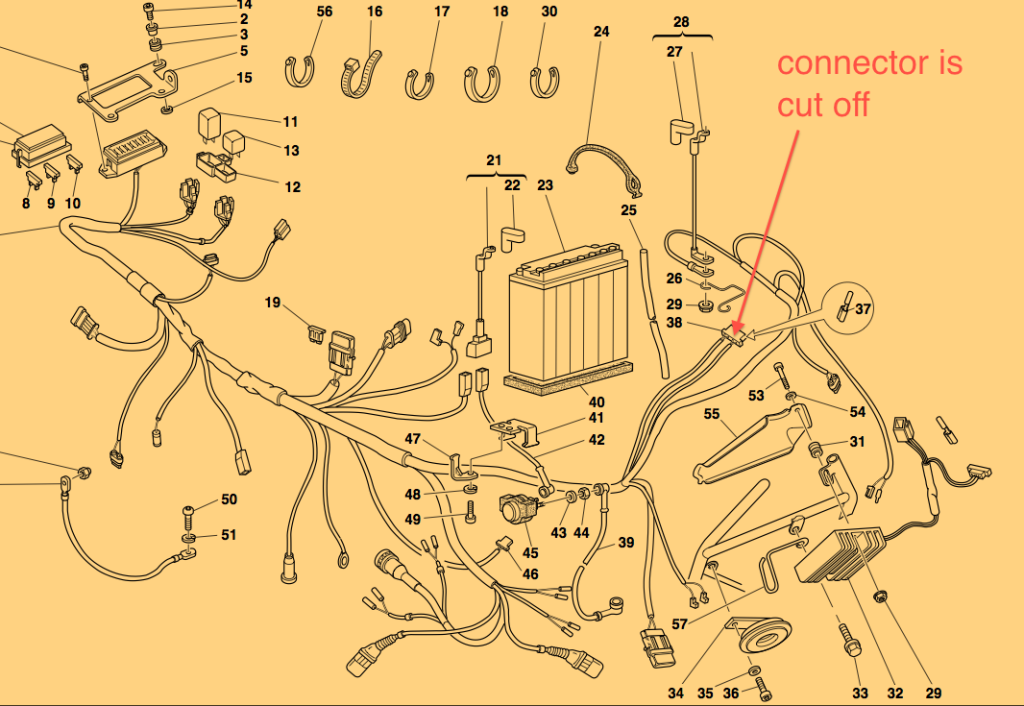

Picture below:
