Mystery gauge light

Started by zarn02, July 29, 2011, 10:34:01 PM

Previous topic - Next topic
Print
Go Down Pages1
User actions

zarn02

July 29, 2011, 10:34:01 PM

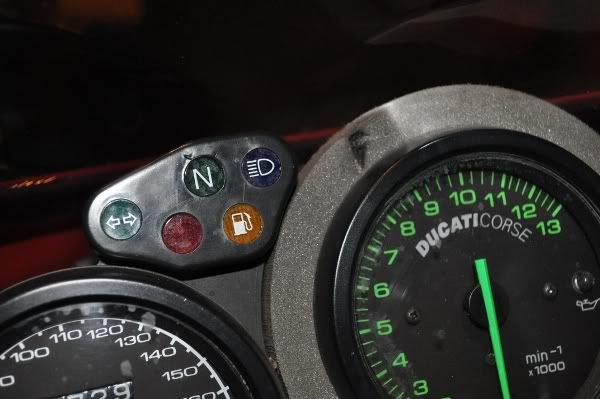

The superbike dash features indicators for fuel, turn signals, neutral, high-beam, and... something.

Having no idea what the idiot light means leaves 'ol Zarn feeling like he's not the brightest bulb in the box.

It's never come on, but should that happen I'd love to know what it was trying to tell me. Both the 998 and 996 owner manuals left me in the dark as to its purpose. Can anyone here illuminate me on the topic?




(Sorry. Not feeling clever tonight and couldn't think of more places to slot in references to light and darkness.)
"If it weren't for our gallows humor, we'd have nothing to hang our hopes on."

tbyte

#1
July 29, 2011, 11:16:06 PM
The red one on mine is the oil pressure.

zarn02

#2
July 29, 2011, 11:26:53 PM
The small light on the tach comes on for oil pressure.
"If it weren't for our gallows humor, we'd have nothing to hang our hopes on."

ducpainter

#3
July 30, 2011, 02:59:30 AM
Ducati used the same warning pod for several models.

The red light is used for oil pressure on ST's and not used on SS and SBK models.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


zarn02

#4
July 30, 2011, 02:11:21 PM
Fair enough. Thanks for the enlightenment.
"If it weren't for our gallows humor, we'd have nothing to hang our hopes on."

ducpainter

#5
September 11, 2011, 03:17:24 PM
Quote from: Carbon 14 on September 11, 2011, 03:13:46 PM
I have a 2004 998 with the same gauge light.  I am going to put a manual fan control switch on and would like to use that light as an indicator.  Does anyone know how I can access that light?  Do I need to power it, ground it or both?

The fans are powered all the time so it would be great to have an indictor light to help prevent the dead battery from leaving the fans on.  Also since the intent is to turn the fans on anytime I have to slow down for traffic the light would serve as a reminder to turn the fans back off when I'm on the open road.
Is there even a socket and bulb in there?
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


ducpainter

#6
September 12, 2011, 04:11:15 AM
I'd have to look at a wiring diagram...

and hope there is even a mention of that unused lamp.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


Howie

#7
September 12, 2011, 10:01:18 AM
I would if I had a wiring diagram (assuming the pin number is correct and the wiring diagram is accurate).  I think it wouldn't be too difficult to sort out if you took the cluster apart and attacked it with an ohmmeter.

ducpainter

#8
September 12, 2011, 03:51:05 PM
Quote from: Carbon 14 on September 12, 2011, 04:48:07 AM
Do you know a specific year and model that used that light for low oil?  If so that's all I really need to get where I'm going.

I was just hoping somebody like Howie would just give me the pin number on the connector and tell me to add + or -.
All ST's, as far as I know, used that lamp for oil warning.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


RBX QB

#9
September 12, 2011, 09:50:51 PM
That light is Turbo Boost. Is yours not working?

That fulfills my smart-ass quota for the evening.

zarn02

#10
September 13, 2011, 12:41:59 AM Last Edit: September 13, 2011, 02:32:08 PM by zarn02
Well hey! My thread found a new life!

As I may at some point install a manual fan switch, given the amount of city riding I do, I really like this idea.

When you suss out how to properly set this up please post directions, because I'm lazy and stupid and therefore might not ever figure it out myself. [cheeky] [thumbsup]
"If it weren't for our gallows humor, we'd have nothing to hang our hopes on."

rule62

#11
September 13, 2011, 02:29:53 PM
C-14 -
Please send the directions to me too, once you've figured them out.  748 in AZ gets mighty hot at the stoplights.
Thanks

greenmonster

#12
September 13, 2011, 05:26:27 PM Last Edit: September 13, 2011, 05:32:05 PM by greenmonster
Charging light?
Is it shining when just ignition is turned on?

And, is there a working bulb in there.....?
M900 -97
MTS 1100s  -07
