Author Topic: Raising the tail  (Read 5358 times)
DaFoose
Falling in Love with my
Full Member
***
Offline Offline

Posts: 105



« on: April 21, 2010, 05:33:15 AM »

I remember seeing those things I can add on to raise my tail about 3 inches (I have a 2001 m900), anyone know where I can buy a pair? I want to order them ASAP. I would check ebay, but I am at work and it's blocked. If someone has a set for sale pm me.

Also anyone have any horror stories from doing so? Or is it just, you like it or you don't? I am 6'4 which is why I want to do this.
Logged

2001 Monster 900 S i.e.  Most recent mods: Smoke integrated tail light with full custom tailchop, Tail Risers
tankerbutt
Full Member
***
Offline Offline

Posts: 171



« Reply #1 on: April 21, 2010, 06:58:22 AM »

DO IT!!!  Did it a year ago along with a stiffer spring and lowered the front a touch, added clip ons and love it  waytogo
Logged
ajw85
Sr. Member
****
Offline Offline

Posts: 358


« Reply #2 on: April 21, 2010, 09:05:19 AM »

What are these things called?
Logged
rockaduc
Hero Member
*****
Offline Offline

Posts: 1045



« Reply #3 on: April 21, 2010, 11:25:19 AM »

What are these things called?

yes, inquiring minds want to know...
Logged

If you can see Chuck Norris, he can see you.  If you can't see Chuck Norris, you may be only seconds away from death.
tankerbutt
Full Member
***
Offline Offline

Posts: 171



« Reply #4 on: April 21, 2010, 11:45:19 AM »

yes, inquiring minds want to know...

Ride height adjusters I think, at least thats what I've seen them called
Logged
The Bearded Duc
a.k.a. duc750
Hero Member
*****
Offline Offline

Posts: 1690



« Reply #5 on: April 21, 2010, 01:33:26 PM »

Ride height adjusters I think, at least thats what I've seen them called

+1
Correct. I believe there are 2 types? Older monsters have a suspension hoop with the ride height adjusters on both ends of the hoop attached to the swing arm and newer monsters have one ride height adjuster rod. IIRC
Logged

2001 M750 - Sold
2006 S2R 800 - She's just darling
junior varsity
loves ze desmodromics.
Hero Member
*****
Offline Offline

Posts: 7355


GT1k, 99 M900(V), 98 M900(W), 00 M900S, 02 748E/R


« Reply #6 on: April 21, 2010, 04:52:57 PM »

Pre-02 monsters are "hooped" monsters, with a frame based off the 851/888 superbikes. the suspension uses a rocker, with a hoop on the wheel-side, that connects to the swingarm. When the wheel hits a bump, the swingarm rises, the hoop acts on the rocker, which pivots and compresses the suspension on the far side. Lengthening the hoop raises the rear ride height. This can be accomplished with an aftermarket hoop (no longer manufactured - unobtainium old-stock from Febur and Rizoma, etc) or with ride height spacers or adjusters. Another solution is to get longer heim joints, or rod-ends to accomplish this same task. (hello McMaster-Carr online catalog!)

Newer Monsters (2003-2009) use a single bar, which is used to adjust ride height. Most bikes do not come with an adjustable ride height rod, but one could be had by purchasing a billet piece from a plethora of manufacturers. A longer or shorter one from a superbike series or other Ducati bike could also be swapped in to raise or shorten the rear ride height.

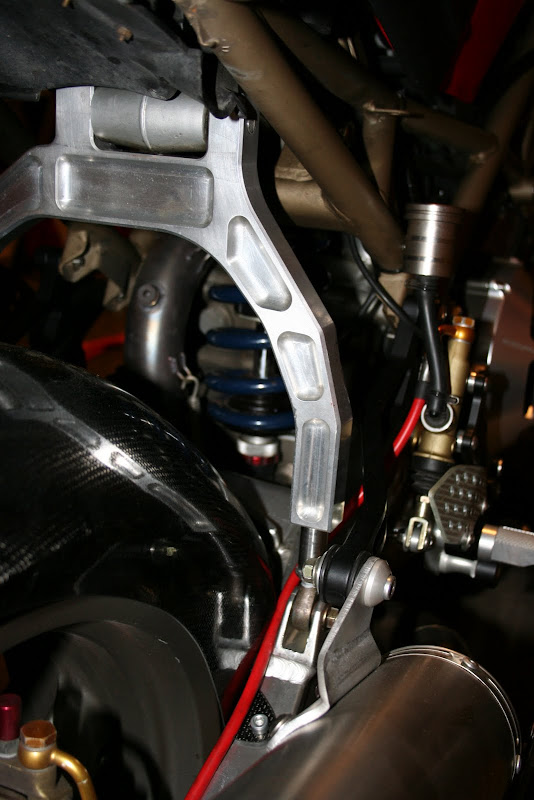

I've got the "classic" era Ducati Monster 900. Here's a pic of it with an OEM-length billet swingarm suspension hoop / arc / arch, and the stainless ride height adusters:



Logged

rockaduc
Hero Member
*****
Offline Offline

Posts: 1045



« Reply #7 on: April 21, 2010, 11:16:16 PM »

Ah HA!  Thanks.
Logged

If you can see Chuck Norris, he can see you.  If you can't see Chuck Norris, you may be only seconds away from death.
Monster Dave
Hero Member
*****
Offline Offline

Posts: 4550


« Reply #8 on: April 23, 2010, 09:39:36 AM »

My Monster has one. It's an '03 and I can tell you first hand that it was nice to be able to raise the seat height! The previous owner had it set LOW!!
