Rivet master link- how far to peen over?

Started by Monsterlover, May 14, 2017, 11:41:50 AM

Previous topic - Next topic
Print
Go Down Pages1
User actions

Monsterlover

May 14, 2017, 11:41:50 AM

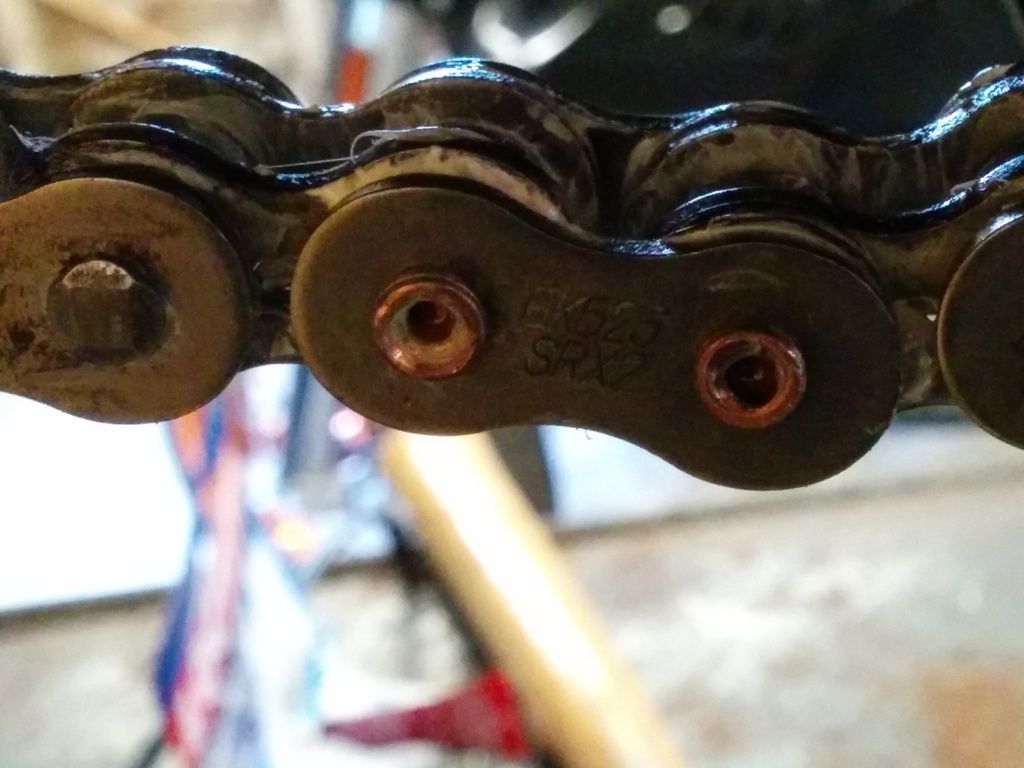

Good?



The diameter of the one on the right is .008" less than the left one.

The heights of the heads to the plate are within .002"

Am I good?
"The Vincent was like a bullet that went straight; the Ducati is like the magic bullet in Dallas that went sideways and hit JFK and the Governor of Texas at the same time."--HST    **"A man who works with his hands is a laborer.  A man who works with his hands and his brain is a craftsman.  A man who works with his hands, brains, and heart is an artist."  -Louis Nizer**

ducpainter

#1
May 14, 2017, 11:54:25 AM
Looks good to me.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


Monsterlover

#2
May 14, 2017, 11:57:13 AM
Quote from: ducpainter on May 14, 2017, 11:54:25 AM
Looks good to me.

I thought so too but I don't do this for a living.

The last rivet master I did was probably in 2007
"The Vincent was like a bullet that went straight; the Ducati is like the magic bullet in Dallas that went sideways and hit JFK and the Governor of Texas at the same time."--HST    **"A man who works with his hands is a laborer.  A man who works with his hands and his brain is a craftsman.  A man who works with his hands, brains, and heart is an artist."  -Louis Nizer**

EEL

#3
May 15, 2017, 01:49:36 PM
The peen looks fine to me as well. Though the hardest issue is making sure you didn't over-wrench the rivet link together. It should flex and not stick when twisted.

Speeddog

#4
May 15, 2017, 02:15:45 PM
Measure the thickness plate-to-plate, should be the same as the factory done ones.

As EEL said, it shouldn't bind when you flex it.
- - - - - Valley Desmo Service - - - - -
Reseda, CA
(951) 640-8908

~~~ "We've rearranged the deck chairs, refilled the champagne glasses, and the band sounds great. This is fine." - Alberto Puig ~~~

koko64

#5
May 15, 2017, 03:59:48 PM
Then there's wiping off the excess goop. You think you got it all off and it still flings off all over the tyre.
2015 Scrambler 800

Monsterlover

#6
May 15, 2017, 05:32:17 PM
Geez, I didn't even consider the goop.

I didn't measure the width but I know the master moves fairly freely since I did at least check that.
