Dent Removal - Any Advise Please?

Started by MonsterMadMarty, January 27, 2015, 06:18:03 AM

Previous topic - Next topic
Print
Go Down Pages1 2
User actions

MonsterMadMarty

January 27, 2015, 06:18:03 AM

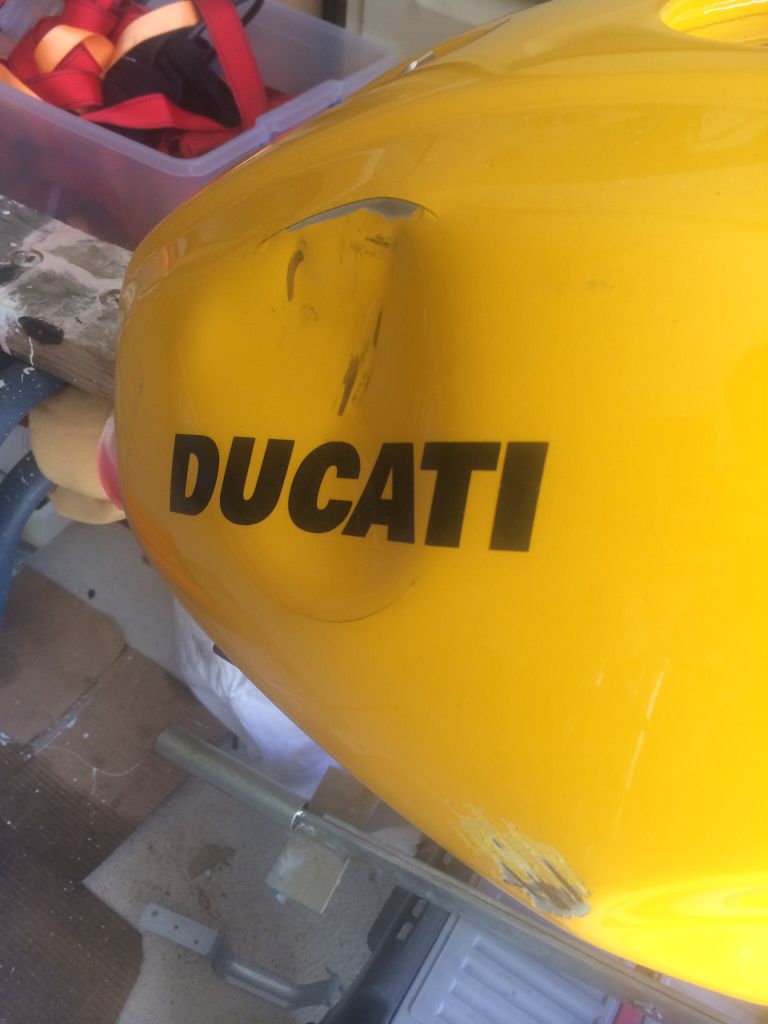

I picked up a 2002 M400 just over a week ago I got it cheap as it had been dropped I've managed to replace all the damaged parts except the tank which has rather a large dent! I've tried a few places locally here in Perth, Western Australia but have been told "the metal is too thick and strong to do with my tools" & "sorry inner baffles won't allow it to pop out"

So, any advise??????

Can it be done? How can I do it myself? Can anyone recommend anyone in Perth that could do it?  Do I give up and use another tank?

I'm not after a prefect result as it will need repainting anyway!

RIDING - 1993 M900 x 2; 2007 M400; 2007 Factory 900XR

Recently purchased: Fire damaged 2001 S4!

My greatest fear in life is that when I die my better half will sell my Ducati's and tools for the price I told her I paid for them!

ducpainter

#1
January 27, 2015, 06:24:13 AM
They're correct...the shape makes it impossible to do conventionally.

I use this...



It's called a stud welder and it allows pulling from the outside without drilling holes and using a more common screw type slide hammer.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


MonsterMadMarty

#2
January 27, 2015, 06:29:01 AM
Quote from: ducpainter on January 27, 2015, 06:24:13 AM
They're correct...the shape makes it impossible to do conventionally.

I use this...



It's called a stud welder and it allows pulling from the outside without drilling holes and using a more common screw type slide hammer.


Oooo..... What do they retail for?..
RIDING - 1993 M900 x 2; 2007 M400; 2007 Factory 900XR

Recently purchased: Fire damaged 2001 S4!

My greatest fear in life is that when I die my better half will sell my Ducati's and tools for the price I told her I paid for them!

ducpainter

#3
January 27, 2015, 06:38:43 AM
About $400 US...that one is fairly heavy duty. Google Motor Guard stud welders

There are cheaper ones, but any way you cut it not really a one use tool.

You still need to be careful. You can pull the stud off along with the tank metal resulting in a hole that needs to be welded.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


MonsterMadMarty

#4
January 27, 2015, 06:47:26 AM
Cheers DP I've been looking on fleaBay they all seem to come from the states! The 110 volts is no good here in Australia! (240 volts).  I'll keep looking  [coffee]
RIDING - 1993 M900 x 2; 2007 M400; 2007 Factory 900XR

Recently purchased: Fire damaged 2001 S4!

My greatest fear in life is that when I die my better half will sell my Ducati's and tools for the price I told her I paid for them!

SpikeC

#5
January 27, 2015, 10:28:53 AM
 I saw a version of this on the TV program "Wheeler Dealers" a while back. I don't believe that he gave a brand name butt it used a little more gentle puller than a slide hammer. They were doing it in England so Straya might have something somewhere in the country.
Spike Cornelius
  PDX
   2009 M1100S Assorted blingy odds and ends(now gone)
2008 Bimota DB5R  woo-Hoo!
   1965 T100SC

ducpainter

#6
January 27, 2015, 10:34:55 AM
Quote from: SpikeC on January 27, 2015, 10:28:53 AM
I saw a version of this on the TV program "Wheeler Dealers" a while back. I don't believe that he gave a brand name butt it used a little more gentle puller than a slide hammer. They were doing it in England so Straya might have something somewhere in the country.

Just because the hammer slides...

doesn't mean you have to use it that way. ;)
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


monsta

#7
January 27, 2015, 11:24:08 AM
At 400$ US for the tools, just buy another second hand tank...
93 M900 - 07 ST3 - 00 748s trackbike - 78 900SS - 13 848 EVO Corse SE

ducatiz

#8
January 27, 2015, 11:49:19 AM
http://www.harborfreight.com/stud-welder-dent-repair-kit-98357.html

mine was $100 7 years ago. still works great.
Check out my oil filter forensics thread!                     Offended? Click here
"Yelling out of cars, turning your speakers out the window to blast your music onto the street, setting off M-80 firecrackers, firing automatic weapons into the airâ€"these are all well and good. But none of them create a merry atmosphere of insouciance and bonhomie quite like a revving motorcycle.

ducpainter

#9
January 27, 2015, 11:54:02 AM
Quote from: ducatiz on January 27, 2015, 11:49:19 AM
http://www.harborfreight.com/stud-welder-dent-repair-kit-98357.html

mine was $100 7 years ago. still works great.
Still not going to help him if he needs 240V.
"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent."


Blackout

#10
January 27, 2015, 11:56:07 AM
Tank dents are manly. Just throw a sticker over 'em.
2003 Ducati Monster 1000
2005 Triumph Speed Triple 1050
2003 Honda CR250
2008 KTM 990 SuperDuke

Speeddog

#11
January 27, 2015, 01:09:04 PM
240V *and* 50 Hz in Oz.  :-\

These guys can help in converting your power to something compatible:
http://www.220-electronics.com/diamond-series-voltage-converters-stabilizers.html

That Harbor Fright stud welder says 40 amp peak, at 120V that's 4800W.
But it's only for 1 second.

My shop-mate has a stud welder, and it doesn't seem to cause problems with our dodgy electrical system.

But.... have a chat with your favorite local Sparky to choose which one is best.

I've no idea how tolerant those converters are to short-term loads like that.
- - - - - Valley Desmo Service - - - - -
Reseda, CA
(951) 640-8908

~~~ "We've rearranged the deck chairs, refilled the champagne glasses, and the band sounds great. This is fine." - Alberto Puig ~~~

ute

#12
January 27, 2015, 04:36:06 PM
I have seen it done with compressed air ...seal all openings pump in air till it pops out .

Now I have tried it but it was on a car gas tank , not a bike ...it did work but the tank puffed up quite a bit kind of un-nerving

Speeddog

#13
January 27, 2015, 08:50:44 PM
Compressed air is not a good plan on a moto tank.
- - - - - Valley Desmo Service - - - - -
Reseda, CA
(951) 640-8908

~~~ "We've rearranged the deck chairs, refilled the champagne glasses, and the band sounds great. This is fine." - Alberto Puig ~~~

MonsterMadMarty

#14
January 28, 2015, 01:55:54 AM
Quote from: monsta on January 27, 2015, 11:24:08 AM
At 400$ US for the tools, just buy another second hand tank...

...and miss out on an excuse to buy more tools! I have two spare tanks it's more the challenge and opportunity to learn  ;D
RIDING - 1993 M900 x 2; 2007 M400; 2007 Factory 900XR

Recently purchased: Fire damaged 2001 S4!

My greatest fear in life is that when I die my better half will sell my Ducati's and tools for the price I told her I paid for them!
