Diagnose this electrical issue?

[koko64]

What's the charging voltage at the battery?

[stopintime]

What's the charging voltage at the battery?

Not possible to check when engine not running. Soon.

[stopintime]

Off the over night charge, 13V

Half an hour later, when mounted back in, 12.8V

12.05V at fast idle, roughly 2.000 revs.
12.05 at slow idle.
12.05 at 4.000 revs.

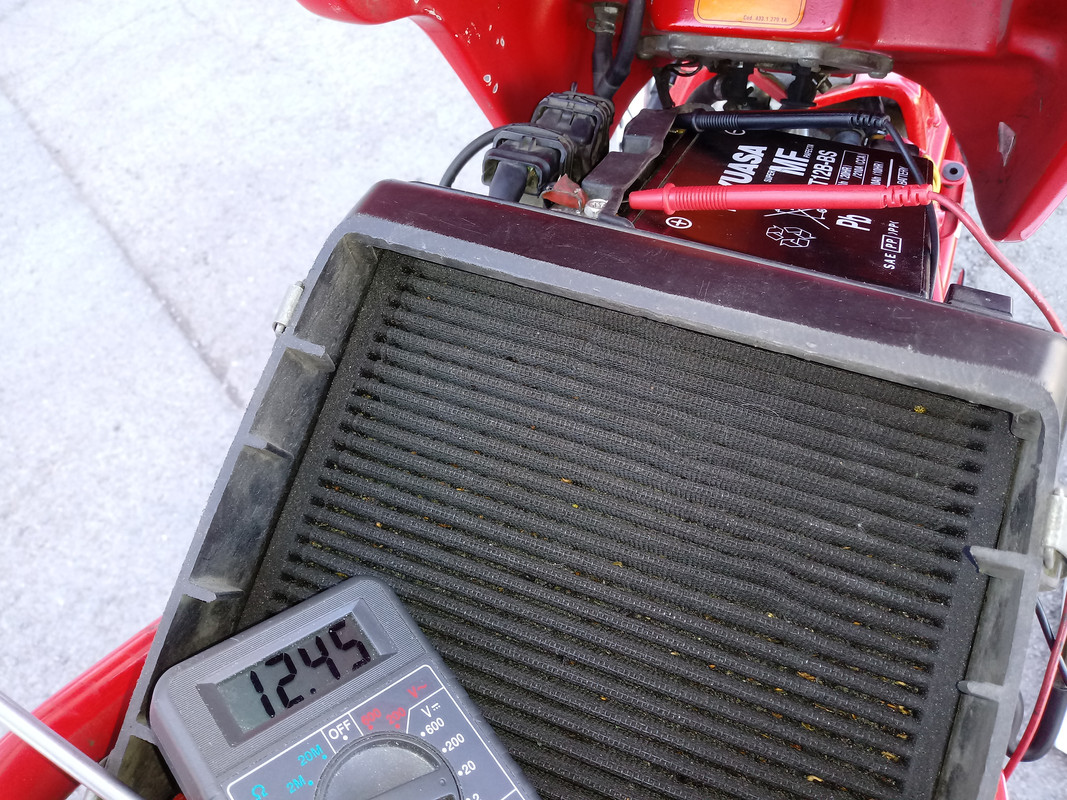

The picture show the measurement on the battery terminals, not running, after the checks.


Across yellow wires, slow idle, 25V~
Fast idle, rroughly 3.000 revs, 40+V~


Correct to think that it's EITHER the regulator or the wires from it to somewhere. I forgot to check the black and white connectors near the regulator (just beside the yellow wires on the picture)

[Howie]

Yes, check those connections.  The 40 amp fuse too!

[koko64]

Yeah, the battery is starved and running total loss. Can you borrow a spare used regulator? Best check all the wires and the alternator output one more time.

Nice open airbox .

I keep some good used regulators as spares just in case. They come up cheap.

[ducpainter]

Replace the make the beast with two backsing regulator already.

[koko64]



[ducpainter]

We all know that's what needs to be done.

He's already replaced the white connector andtested the alternator.

Let's end the pain...replace the R/R.

[stopintime]

Replace the make the beast with two backsing regulator already.

Tomorrow ok for you?

[koko64]



[koko64]

Just one more thing to check.










No, not really

[ducpainter]

Tomorrow ok for you?

Works for me.

[koko64]



[stopintime]

Still six hours left of today.

Maybe I'll be a good neighbour and save the start and test until tomorrow.....
