S4R oil cooler question

Started by cruzr180, July 19, 2009, 06:37:37 AM

Previous topic - Next topic
Print
Go Down Pages1
User actions

cruzr180

July 19, 2009, 06:37:37 AM
Need to replace the oil cooler on my 04 S4R.  Having a hard time finding a used one.  Anyone know if any other ducati models use the same cooler?
This one has oil lines on each side plus a 3rd smaller one on the left side.  Or can another cooler be modified to fit?

cruzr180

#1
July 19, 2009, 01:52:38 PM

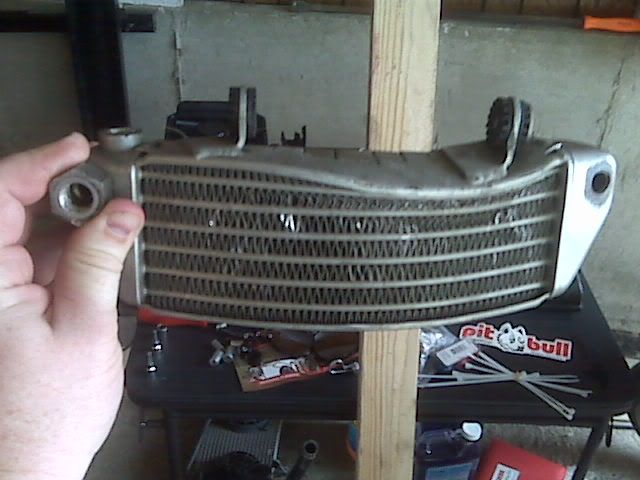

Is this the correct oil cooler?
It says KTM on the top and bottom. Dont mind the dent. :)


DucHead

#2
July 19, 2009, 05:55:59 PM Last Edit: July 19, 2009, 06:00:04 PM by pompetta
That looks right.  KTM makes Ducati coolers.

Oil coolers are oil coolers.  The only special thing about the S4R unit is the fitting for the oil line to the head (top left in your pic).  Finding a cooler with threaded openings for 3 fittings might be challenging.
'05 S4R (>47k mi); '04 Bandit 1200 (>92k mi; sold); '02 Bandit 1200 (>11k mi); '97 Bandit 1200 (2k mi); '13 FJR1300 (1k mi); IBA #28454 "45"

DarkStaR

#3
July 19, 2009, 10:01:59 PM
Quote from: pompetta on July 19, 2009, 05:55:59 PM
...
Finding a cooler with threaded openings for 3 fittings might be challenging.

DucHead

#4
July 20, 2009, 03:47:25 AM
Quote from: DarkStaR on July 19, 2009, 10:01:59 PM


Good idea, wrong fitting.

To use an aftermarket cooler, he needs a fitting with one 14mm (?) threaded male joint connected to both a 14mm (?) female joint and a 10mm female joint to accept a banjo bolt -- pretty tall order.  Even then, I'd be wary about the new setup delivering oil to the heads at the same rate/temperature as the OEM setup.
'05 S4R (>47k mi); '04 Bandit 1200 (>92k mi; sold); '02 Bandit 1200 (>11k mi); '97 Bandit 1200 (2k mi); '13 FJR1300 (1k mi); IBA #28454 "45"
