rotors - 320mm, 6 bolt, no offset - what bike?

junior varsity · January 16, 2011, 05:55:29 PM

i ended up with an extra set of rotors that are 6-bolt, 320mm but have zero offset.

Any idea what bike would take these? I'm guessing non-ducati.

ducatiz · January 16, 2011, 06:20:05 PM

Aprilia used the same setup as does MV. I had a set of Aprilia narrow bands with a VERY slight offset, but I sold them.

junior varsity · January 16, 2011, 06:22:41 PM

These are perfectly flat... so does that eliminate Aprilia/MV? I thought Aprilia used the 6-bolt 10mm offset 320's that are on all the older ducs...

ducatiz · January 16, 2011, 06:27:20 PM

for most of their bikes. They used a narrow band rotor with the same offset as the SBKs but with a 6 bolt pattern.

i've not seen any genuinely FLAT rotors except on older bikes and usually iron rotors. you mic'ed them right?

junior varsity · January 16, 2011, 06:31:56 PM

come again?

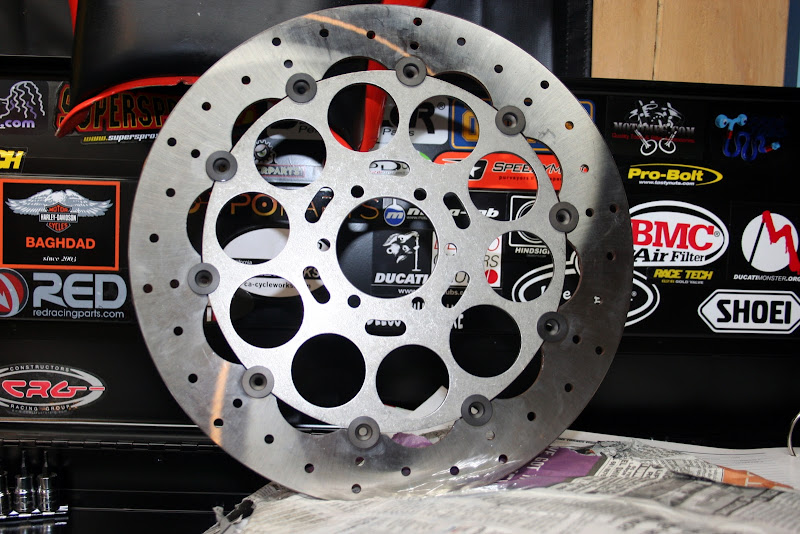

i'll put a picture up in about two seconds.

i thought gsxr's used 0 offset (as do the small rotor'd s2r's

junior varsity · January 16, 2011, 07:10:37 PM

Duck-Stew · January 17, 2011, 12:12:58 AM

Huh... Odd. Looks like the Ducati 6-bolt pattern (64/80), and the carriers look like Discacciati's other stuff...

Dunno, maybe one-off's?!?

junior varsity · January 17, 2011, 06:25:25 AM

I ended up with them without being able to put my hands on them really (not quite sight unseen, I saw the 6 bolt pattern but was in the dark as to the offset.) luckily I'm out almost no dinero.

atomic410 · January 17, 2011, 07:23:38 AM

yamaha? too bad they are not 310's my motard wheels would be on it, if they were yamaha fit

junior varsity · January 17, 2011, 07:25:52 AM

do you have radial mount calipers? bc yoyodyne has a solution for you!

atomic410 · January 17, 2011, 10:00:13 AM

nope berringer 6 pots. fwiw harley has a upgrade brembo rotor package for the streed rod (or whatever its called) i remember that the rotors and calipers were all silver like that, cant remember if it had 1 or 2 up front though.

corey · January 20, 2011, 03:24:53 PM

might be some of the wierd narrow band corse stuff for the 999.
uses those two-piece calipers...

theo might be able to shed some light.

Duck-Stew · January 20, 2011, 03:50:45 PM

Quote from: corey on January 20, 2011, 03:24:53 PM
might be some of the wierd narrow band corse stuff for the 999.
uses those two-piece calipers...

theo might be able to shed some light.

all 999 = 5 bolt rotors, these are 6.

junior varsity · January 20, 2011, 04:10:22 PM

6, and these are WIDE band if there ever was - lots of surface area for the pads.

they become sweet looking really heavy clocks if I can't figure it out.

Drunken Monkey · January 20, 2011, 04:25:24 PM

If they are around 5mm thick and have an 132mm center and the bolts are in a 150mm diameter pattern then they are for a Yamaha YZF.

I only know this because nobody makes aftermarket rotors that fit an 02 Duke II, so I was looking into getting a 5mm mounting plate fabbed then using one of these rotors bolted onto the plate.
